Migration

Migrating existing Deployments running in Kubernetes is very simple using the rig-ops migrate command.

The tool is built to ensure that the migration is happening in-place and without incurring any downtime, even from existing toolchains that is built upon Helm or similar. Read more about this here.

The tool works by scanning your targeted cluster for running deployments and finds all resources associated with them; Services, Ingresses, ConfigMaps, etc.

The command uses a mix of the Rig Platform and the in-cluster running Rig Operator to compute dry run versions of a Capsule, that in turn is compared to the running resources. Using this feedback, it's trivial to adjust the migrate parameters and cluster configuration to allow a seamless migration.

info
Download rig-ops CLI

Go to rig-ops for instructions on how to install the rig-ops CLI, that contains the migrate command.

Selecting a deployment​

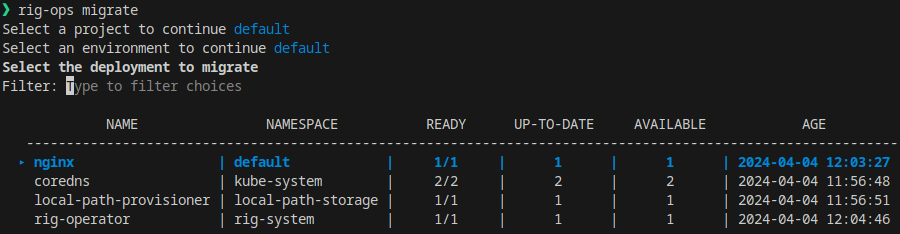

First step is to select a deployment to migrate. When running rig-ops migrate without any arguments, the tool will query the Cluster and show the list of deployments that can be migrated:

Select DeploymentSelect Deployment

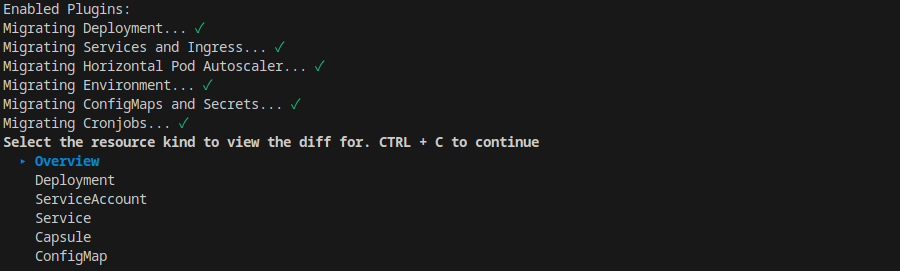

After selecting a deployment, the tool will compute a diff between resources generated by a to-be Capsule and the existing Cluster resources. The next step allows the user to navigate the changes and validate that the to-be capsule matches expectations.

Capsule breakdownCapsule breakdown

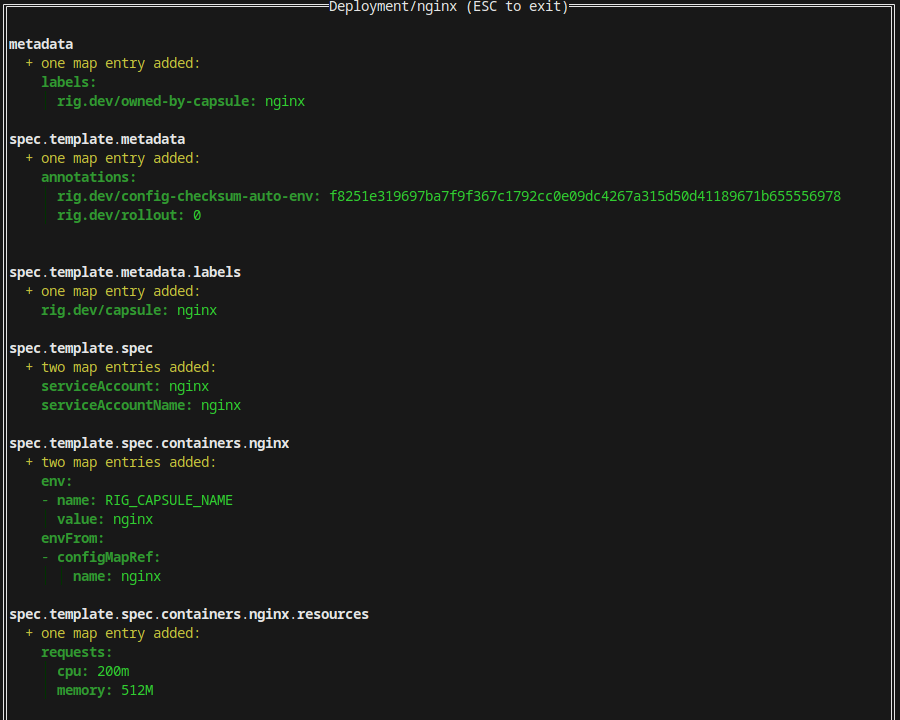

The diff itself, is a full diff between how the resource looks now (if exists) and exactly how it will look after being applied. Since the tool is using the Operator, it's possible to get Kubernetes to perform the rendering of the resource with all runtime-properties associated to it.

That means the output is 1:1 identical with what would happen if the change were to be applied.

Apply changesApply changes

If satisfied, Ctrl-C will leave the view and exit the tool.

Applying changes​

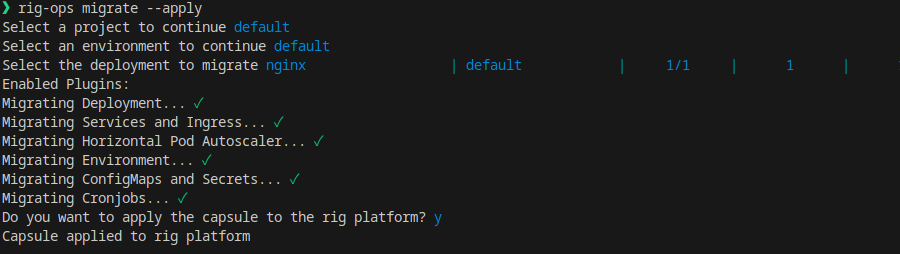

By default, no changes are made when running the tool. It's only when --apply is given, that the tool will, and the end of existing instructions, query if the tool should apply the changes against the Platform - that means creating the Capsule if it doesn't exist, and start a deployment with the new configuration.

Apply changesApply changes

When a Capsule migration is applied, the resources in the Kubernetes cluster are automatically overridden by Operator. That means that objects that was previously managed by e.g. Helm resources, will now be managed by the Operator instead. Due to how Ownership References are handled in Kubernetes, this also means Helm will abort if used instead and thus ensuring the two systems won't compete against each other.

This also has another side-effect; the migration is happening seamless and will have no impact on uptime.

Live migration

Live migration is a key feature in adopting the Rig Platform. It is however still advised to:

  1. Carefully review the diffs in the rig-ops migrate tool
  2. Try migrating in a non-production environment

before moving forward with the actual migration.

Offline execution​

While the tooling is using the Operator to compute the diff, it's possible to generate a diff from offline resources as well. That means a dump of one Kubernetes cluster can be used instead of querying it in a live settings.

A good example is the following flow:

  1. Produce a dump of non-sensitive objects from a production environment:
    kubectl get deployment,service,horizontalpodautoscaler.autoscaling,ingress,cronjob.batch -A -o yaml > objects.yaml
  2. With a non-production cluster (e.g. KinD running on the local machine), run the migration against the production objects:
    rig-ops migrate -f objects.yaml
  3. Apply the changes to the local cluster and further explore the objects as Capsules through the Platform.
