Capsule Extensions

The Rig Platform offers Capsule Extensions as a way to expand on the Capsule Spec, by introducing company-specific features.

Extensions are defined as part of the Platform configuration and defines a schema for how the fields of the extensions are to be used. The Dashboard and CLI then adds functionality to configure the extensions for the Capsules individually, and passes the validated extension input to the Clusters.

Each Cluster can then implement the extensions using Plugins.

Capsule ExtensionsCapsule Extensions

Configuring a Capsule Extension​

The Capsule Extension consists of a name and an associated schema, in the form of a JSON Schema.

The schema should include the fields that the user can control along with the type. The UI then generates UI components to make it easy to toggle and configure the extensions. Additionally, a raw tab is available where the user-input can be given directly.

The following is an example of an extension named terminationGracePeriod, with an associated integer property named seconds.

Helm values - Platform
rig:
  capsuleExtensions:
    terminationGracePeriod:
      schema:
        title: "Termination Grace Period"
        description: |
          The termination grace can be used to shorten or extends
          the default grace-period when the container is terminated.
        type: object
        properties:
          seconds:
            description: "The duration, in seconds, of the grace period."
            type: integer
            minimum: 10
            maximum: 60

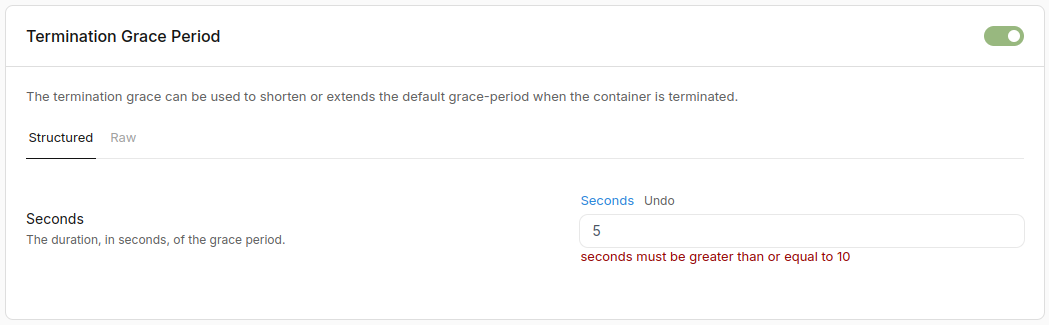

The Dashboard then renders the extensions fields, making it easy for the developers to configured the extensions for the Capsules:

Capsule ExtensionsCapsule Extensions

Restrictions​

The following restrictions are enforced on the schema:

  • The top-level property must be an Object.
  • No nested Object or Array properties.
  • All Objects have the additionalProperties set to false.

Cluster implementation​

Within each cluster, the implementation of Capsule Extensions is given as a plugin configuration of the Operator.

The following is an implementation of the above Capsule Extensions, using the rigdev.object_template plugin.

Helm values - Operator
config:
  pipeline:
    capsuleExtensions:
      terminationGracePeriod:
        plugin: rigdev.object_template
        config: |
          group: apps
          kind: Deployment
          object: |
            spec:
              template:
                spec:
                  terminationGracePeriodSeconds: {{ .capsuleExtensions.terminationGracePeriod.seconds }}
